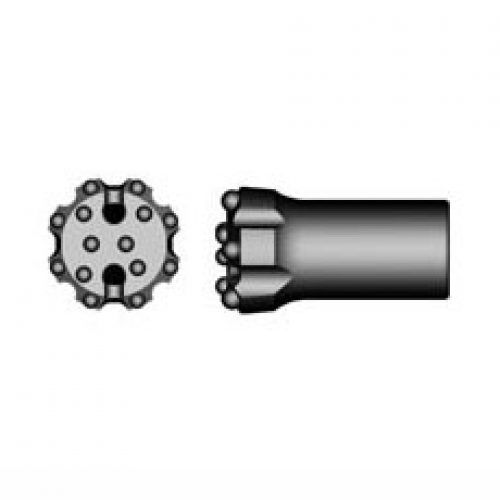

T38/R38 螺纹钻头
| 产品规格 | 直径 | 合金(mm) | 出气孔 | 重量 | ||
| mm | 边齿 | 中齿 | 侧 | 中 | kg | |
  |
57 | 5*11 | 3*10 | 1 | 1 | 1.6 |
| 64 | 5*12 | 3*11 | 1 | 1 | 1.6 | |
| 76 | 5*14 | 3*12 | 1 | 2 | 2.4 | |
 |
64 | 8*9 | 4*9 | 2 | 2 | 1.8 |
| 76 | 8*11 | 4*10 | 2 | 2 | 2.6 | |
| 89 | 8*12 | 6*11 | 2 | 2 | 3.3 | |
| 102 | 8*13 | 6*12 | 2 | 2 | 4.7 | |
 |
64 | 6*10 | 4*9 | 0 | 3 | 1.7 |
| 70 | 6*11 | 4*10 | 0 | 3 | 2.2 | |
| 89 | 6*14 | 4*12 | 0 | 3 | 4.3 | |
 |
64 | 8*9 | 5*8 | 0 | 4 | 1.7 |
| 70 | 8*10 | 5*9 | 0 | 4 | 2.2 | |
| 76 | 8*11 | 5*10 | 0 | 4 | 2.7 | |
| 89 | 8*12 | 6*11 | 0 | 4 | 3.3 | |
| 102 | 8*13 | 6*12 | 0 | 4 | 4.7 | |
 |
60 | 8*9 | 3*9 | 2 | 2 | 1.7 |
| 64 | 8*9 | 4*9 | 2 | 2 | 2 | |
| 70 | 8*10 | 4*10 | 2 | 2 | 2.4 | |
| 76 | 8*11 | 4*10 | 2 | 2 | 3.2 | |
| 89 | 8*12 | 5*12 | 2 | 2 | 5.8 | |
 |
64 | 8*9 | 5*9 | 0 | 4 | 1.9 |
| 70 | 8*10 | 5*10 | 0 | 4 | 2.4 | |
| 76 | 8*11 | 5*10 | 0 | 4 | 3.3 | |
| 89 | 8*12 | 6*11 | 0 | 4 | 5.3 | |
T45 螺纹钻头
| 产品规格 | 直径 | 合金(mm) | 出气孔 | 重量 | ||
| mm | 边齿 | 中齿 | 侧 | 中 | kg | |
 |
70 | 6*11 | 4*10 | 0 | 2 | 2.4 |
| 76 | 6*13 | 4*10 | 0 | 2 | 2.6 | |
| 89 | 8*12 | 5*12 | 2 | 2 | 4.5 | |
| 102 | 8*13 | 6*12 | 2 | 2 | 5 | |
| 115 | 8*14 | 6*13 | 2 | 2 | 6.8 | |
 |
64 | 6*10 | 4*9 | 0 | 3 | 1.6 |
| 70 | 6*12 | 4*10 | 0 | 4 | 2.4 | |
| 76 | 8*10 | 5*10 | 0 | 4 | 2.6 | |
| 89 | 8*12 | 6*11 | 0 | 4 | 4.6 | |
| 102 | 8*13 | 6*12 | 0 | 4 | 4.5 | |
 |
70 | 8*11 | 4*10 | 2 | 2 | 2.5 |
| 76 | 8*11 | 4*10 | 2 | 2 | 3.1 | |
| 80 | 8*12 | 5*11 | 2 | 2 | 4 | |
| 89 | 8*12 | 6*11 | 2 | 2 | 5.1 | |
| 102 | 8*13 | 6*12 | 2 | 2 | 8.2 | |
 |
70 | 8*10 | 5*9 | 0 | 4 | 2.2 |
| 76 | 8*11 | 6*9 | 0 | 4 | 3.1 | |
| 89 | 8*12 | 6*11 | 0 | 4 | 5.4 | |
| 102 | 8*13 | 6*12 | 0 | 4 | 7.8 | |
| 105 | 8*13 | 6*12 | 0 | 4 | 8.3 | |
R25/R32 螺纹钻头
T51/T58 螺纹钻头
| 产品规格 | 直径 | 合金(mm) | 出气孔 | 重量 | ||
| mm | 边齿 | 中齿 | 侧 | 中 | kg | |
|
89 | 8*12 | 5*12 | 2 | 2 | 4.9 |
| 102 | 8*13 | 6*12 | 2 | 2 | 5.8 | |
| 115 | 8*14 | 6*13 | 2 | 2 | 6.8 | |
| 127 | 8*14 | 6*14 | 2 | 2 | 7.5 | |
 |
89 | 9*10 | 6*11 | 0 | 3 | 4.6 |
| 102 | 9*12 | 6*12 | 0 | 3 | 5.9 | |
| 115 | 9*12 | 9*12 | 0 | 3 | 6.6 | |
| 127 | 9*13 | 9*13 | 0 | 3 | 8.4 | |
| 152 | 9*14 | 9*14 | 0 | 3 | 11.1 | |
|
89 | 6*14 | 4*12 | 0 | 3 | 4.5 |
| 102 | 8*13 | 6*12 | 0 | 4 | 5.7 | |
| 115 | 8*13 | 6*13 | 0 | 4 | 6.8 | |
| 127 | 8*14 | 7*13 | 0 | 4 | 7.5 | |
| 140 | 8*16 | 6*16 | 0 | 4 | 14.4 | |
| 152 | 8*16 | 7*16 | 0 | 4 | 15.1 | |
|
89 | 8*12 | 5*12 | 2 | 2 | 5.1 |
| 102 | 8*13 | 6*12 | 2 | 2 | 7.1 | |
| 115 | 8*14 | 6*13 | 2 | 2 | 10.5 | |
| 127 | 8*14 | 6*14 | 2 | 2 | 12.5 | |
|
89 | 8*12 | 6*11 | 0 | 4 | 5.3 |
| 102 | 8*13 | 6*12 | 0 | 4 | 7.4 | |
| 115 | 8*13 | 6*13 | 0 | 4 | 10.2 | |
| 127 | 8*14 | 7*13 | 0 | 4 | 12 | |
